Optical SFP
Product
3G-SDI optical fiber module




For more information, please visit http://www.viita.com.tw/goods.php

  • 12G-SDI CWDM (白底)_350x233_2020_0717
  • RM3(C)-S1-3103K-T(R0) (白底)_350x233_2020_0717
  • RM3(C)-S1-4103K-D (白底)_350x233_2020_0717
  • RM3(C)-S1-4103K-T (白底)_350x232_2020_0717
  • RM3-S1-2103K-T0(R0) (白底)_350x233_2020_0717
  • RM3-S1-4103K-F (白底)_250x232_2020_0717
  • RM3-S1-4103K-G (白底)_350x233_2020_0717
  • RM3-S1-4103K-R (白底)_350x232_2020_0717
  • RM3-S3-4103K-B (白底)_350x233_2020_0717
  • Support SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Handles pathological patterns for 3G-SDI, HD-SDI, SD-SDI
  • Multi-connector type SFP: LC type / SC type / ST type

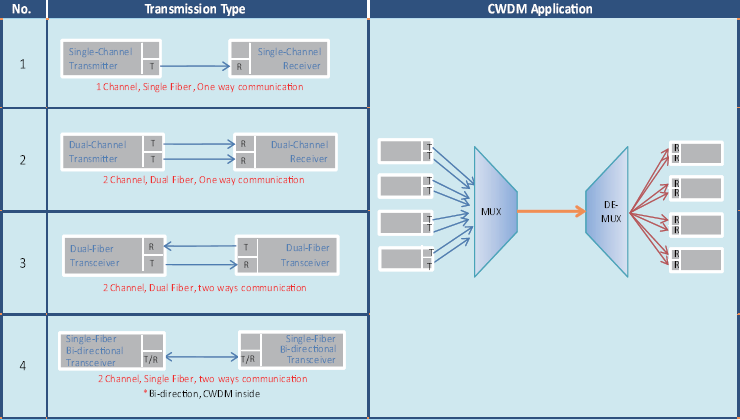

  • Unique type: Single fiber bi-directional communication
  • Distance: up to 80km
  • Operating case temperature: 0˚C to +70˚C or -40˚C to +85˚C
  • 18ch CWDM wavelengths in option
  • MSA/ Non-MSA pin assagin (Optional)

Part Number Type Optical Power (dBm) Sensitivity
(dBm)
Wavelength
(nm)
Connector DDMI Operating case temperature
RM3-S2-4803K-T* 1-port TX +1 ~ +5 - CWDM *1) LC Y 0°C ~ +70°C
RM3-S*-4403K-T* 1-port TX -4 ~ +2 - CWDM *2) LC Y 0°C ~ +70°C
RM3-S1-4103K-T0 1-port TX -8 ~ -3 - 1310 LC - 0°C ~ +70°C
RM3-S1-3103K-T0 1-port TX -8 ~ -3 - 1310 ST - 0°C ~ +70°C
RM3-S1-2103K-T0 1-port TX -8 ~ -3 - 1310 SC - 0°C ~ +70°C
RM3-S2-4803K-F* 2-port TX +1 ~ +5 - CWDM *1) LC Y 0°C ~ +70°C
RM3-S*-4403K-F* 2-port TX -4 ~ +2 - CWDM *2) LC Y 0°C ~ +70°C
RM3-S2-4403K-F 2-port TX -4 ~ +2 - 1550 LC Y 0°C ~ +70°C
RM3-S1-4103K-F0 2-port TX -4 ~ +2 - 1310 LC - 0°C ~ +70°C
RM3-S2-4803K-R 1-port RX - -23   LC Y 0°C ~ +70°C
RM3-S1-4103K-R 1-port RX - -18   LC Y 0°C ~ +70°C
RM3-S1-3103K-R0 1-port RX - -19   ST - 0°C ~ +70°C
RM3-S1-2103K-R0 1-port RX - -19   SC - 0°C ~ +70°C
RM3-S2-4803K-G0 2-port RX - -23   LC - 0°C ~ +70°C
RM3-S1-4103K-G 2-port RX - -18   LC Y 0°C ~ +70°C
RM3-S2-4803K-D* 2-port TRX +1 ~ +5 -23 CWDM *1) LC Y 0°C ~ +70°C
RM3-S*-4403K-D* 2-port TRX -4 ~ +2 -20 CWDM *2) LC Y 0°C ~ +70°C
RM3-S1-4203S-D 2-port TRX -6 ~ -1 -19 1310 LC Y 0°C ~ +70°C
RM3-S1-4103K-D 2-port TRX -8 ~ -3 -18 1310 LC Y -20°C ~ +85°C
RM3-S2-4103L-D 2-port TRX -8 ~ -3 -16 1550 LC Y -40°C ~ +85°C
RM3-S3-4103K-B 1-port TRX -8 ~ -3 -16 T1310/R1550 LC Y 0°C ~ +70°C
RM3-S4-4103K-B 1-port TRX -8 ~ -3 -16 T1550/R1310 LC Y 0°C ~ +70°C
RM3-S3-2103L-B0 1-port TRX -8 ~ -3 -16 T1310/R1550 SC - -40°C ~ +85°C
RM3-S4-2103L-B0 1-port TRX -8 ~ -3 -16 T1550/R1310 SC - -40°C ~ +85°C


​*1)     CWDM model up to 8 wavelengths, please contact with ViiTA for more detail.
          (1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 / 1610nm in option)

*2)     CWDM model up to 18 wavelengths, please contact with ViiTA for more detail.
          (1270 / 1290 / 1310 / 1330 / 1350 / 1370 / 1390 / 1410 / 1430 / 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 / 1610nm in option)


** Please feel free to contact info@viita.com.tw if any other requirements.
